MSI H81M PRO-VD DDR3/1600

ยี่ห้อ: MSI
รหัสสินค้า: MBD-MSI-H81MPRO
มีสินค้า: ในสต็อก
  • Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
  • Supports DDR3-1600 Memory
  • 4 x USB 3.0 (2 x Front + 2 x Rear) + SATA 6Gb/s
  • Military Class 4: Top Quality & Stability
  • Military Class Essentials: Total Protection for Military Class Motherboards
  • OC Genie 4: Overclock in 1 Second
  • Click BIOS 4: Easily Fine-tune Your System
  • Command Center: Control & Customize Your PC Settings
  • Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
  • M-Flash: Simply Update & Backup Your BIOS
  • Live Update 6: Easily Update The Latest BIOS & Drivers
 MB Windows 10 compatibility list



Military Class 4

Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.

Dark Choke

Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

SOLID CAP

With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.



Military Class essentials

The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.

Humidity Protection



The latest Gen 4 Fabric PCB helps to against moisture cause by some humid conditions and environments.

EMI Protection



The optimized EMI-proof design helps to keep users safe when during a long-time computer operation.

ESD Protection



Anti-ESD ICs and fuses onboard helps to totally protect your motherboard from electrostatic damage.

HIGH Temperature Protection



Certificated Military Class 4 components help to work stable under some extreme conditions.



ISOLATED AUDIO PCB

With traditional onboard audio the signal is distorted by electromagnetic signals from the rest of the PCB. Acting like a dedicated soundcard by physically isolating the audio circuitry which is separated by a isolating path. Less interference gives you a more clear audio signal.

HIGH QUALITY AUDIO CAPACITORS

With the use of professional Nichicon Japanese capacitors, specially designed for audio purposes, H81M PRO-VD delivers high fidelity crystal clear sound with exceptional acoustics and realism.

  • Acoustic series
  • Lower Tolerance
  • Lower Dielectric Absorption
  • Lower ESR
  • Lower Leakage Current
  • Higher Stability

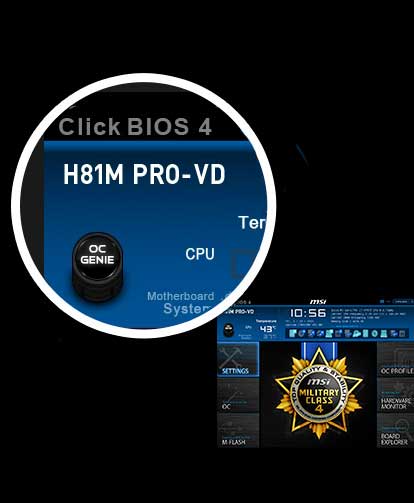

OC Genie 4

With the one-second overclocking option OC Genie we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot straight away. Give your system an awesome performance boost with ease.



CLICK BIOS 4

The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.

LIVE UPDATE 6

MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.

FAST BOOT

No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.

M-Flash

Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.

  • Backup/Restore Your BIOS to/from Any USB Flash Disk
  • Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
  • Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process



USB 3.0 (2 x FRONT + 2 x REAR)

Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.

  • 10X Faster Than USB 2.0
  • Up to 5Gb/s Data Transfer Bandwidth
  • Boost Transfer Rate Between Your PC and External Storage Devices



SATA 6Gb/s

SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.

  • 2X Faster Than SATA 3Gb/s
  • Up to 6Gb/s Data Transfer Bandwidth
  • Unleash True Performance of New HDDs/SSDs
CPU Support i7
Socket Type 1150
Chipset Intel® H81 Express
Memory DDR3 1066/1333/1600 MHz
PCI-Ex16 1
PCI-E Gen Gen2(16)
PCI-Ex1 2
SATAII 2
SATAIII 2
LAN 10/100/1000*1
USB 2.0 ports (Rear) 4
Audio ports (Rear) 3
Form Factor M-ATX
